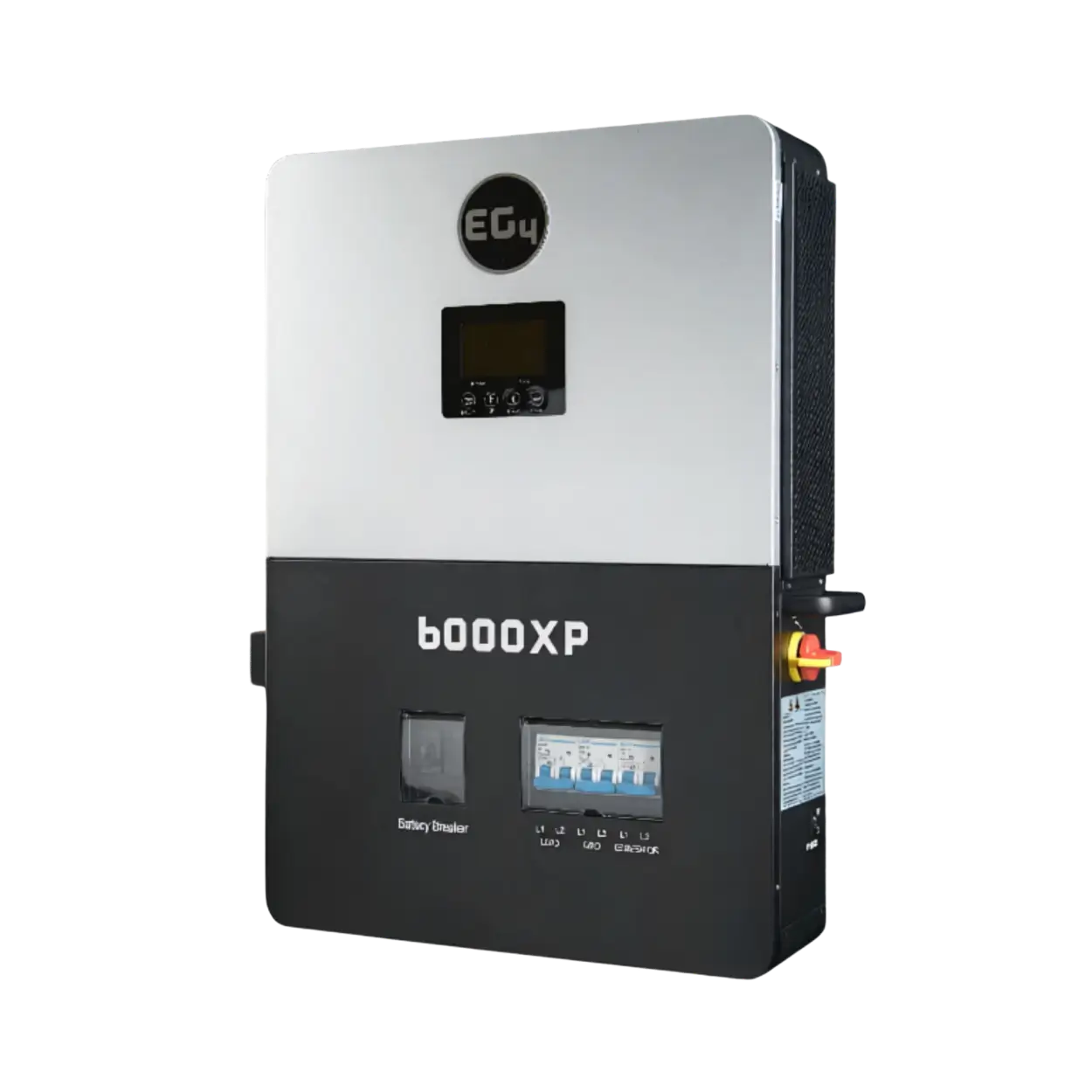

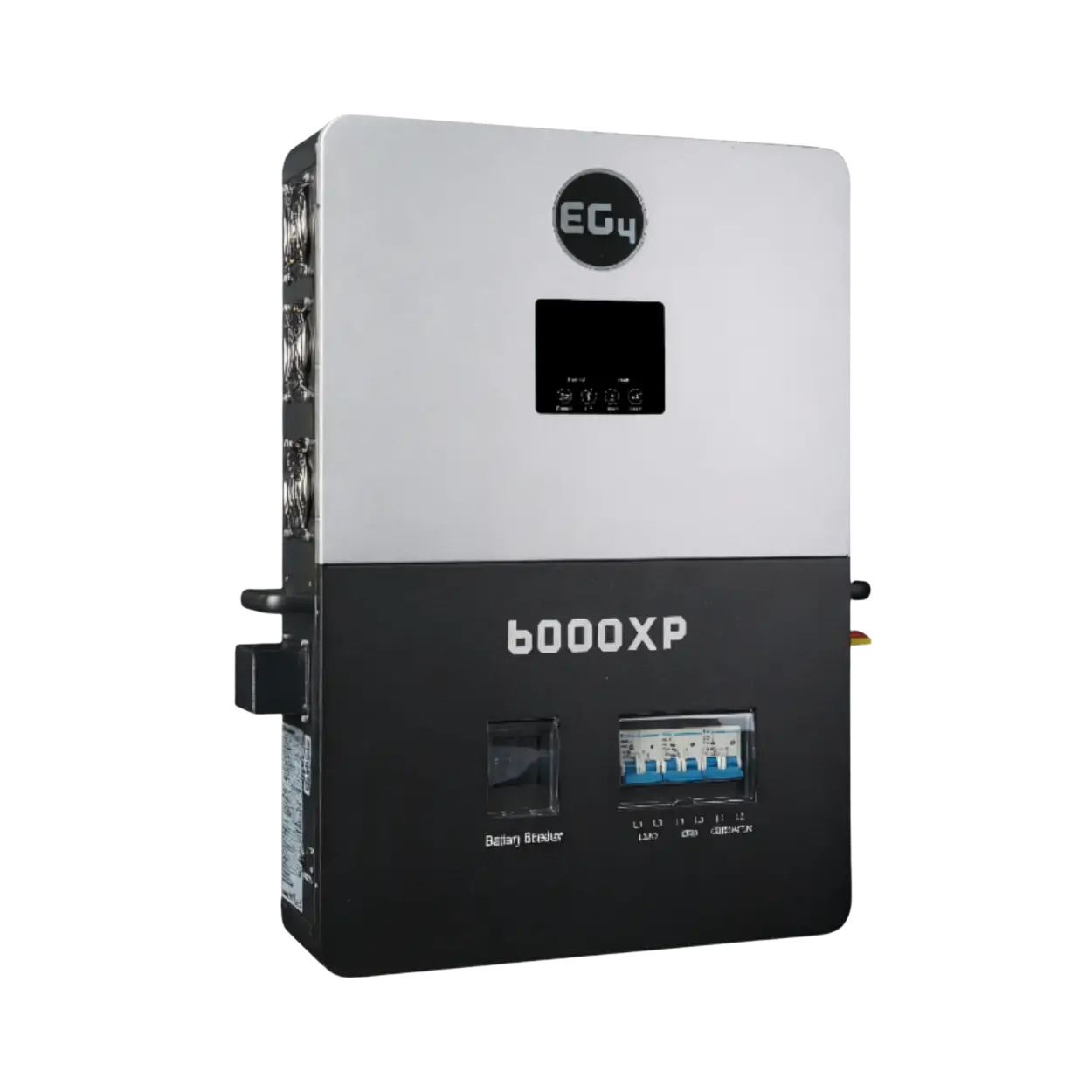

EG4 6000XP Overview
The EG4 6000XP is a 48V split-phase off-grid inverter/charger designed for solar-plus-battery applications. EG4 lists 6kW nominal output and up to 8kW of usable PV input, with two MPPTs and 120/240V split-phase output.
The unit can operate off-grid and can also use grid or generator input for supplemental charging. EG4 also supports parallel operation, allowing up to 16 units according to its current product documentation.
Key Specifications
| Model | EG4 6000XP |
| Inverter type | All-in-one off-grid inverter/charger |
| Nominal output | 6,000W |
| AC output | 120/240V split-phase |
| Battery voltage | 48VDC nominal |
| MPPTs | 2 |
| Maximum utilized PV power | 8,000W |
| PV voltage range | 100–480VDC input range |
| MPPT operating range | 120–385VDC |
| MPPT efficiency | Up to 99% |
| Parallel capability | Up to 16 units |
| Dimensions | 18 × 25.5 × 5.25 in |
| Weight | 52.9 lb (24 kg) |
